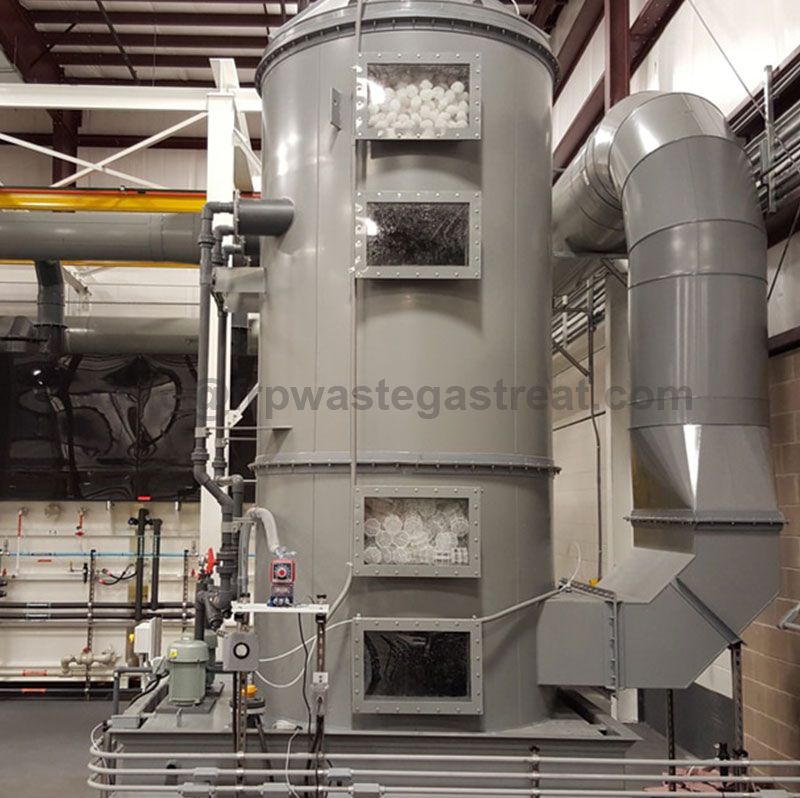

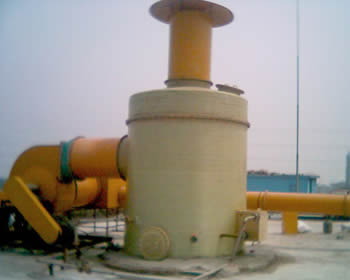

FRP Bubbling Filler Air Scrubber to Treat Waste Gas
High Efficiency FRP Bubbling Filler air scrubber is widely used in waste gas treatment in many fields.
FRP bubbling filler air scrubber is a kind of acid mist air scrubber. It's widely used in waste gas treatment, such as water soluble gas like: H2SO4, HCL, HF, CrO3, HCN, H2S and NH3. FRP bubbling filler air scrubber cleans the gas through bubble scrub process. Compared with traditional air scrubber, it's well designed and has a higher efficiency. Meanwhile, it occupies less area than traditional gas scrubber.
Specification:
Material: fiberglass reinforced plastic (seamless one-piece winding).
Wind quantity: 4500 m3/h - 50000 m3/h.
Power of fan: 7.5 kw - 55 kw.
Diameter: 1400 mm - 3600 mm.
Purification efficiency: > 97%.
| The specification of FRP bubbling style filler air scrubber | |||||||
| Items | BFPT-1 | BFPT-2 | BFPT-3 | BFPT-4 | BFPT-5 | BFPT-6 | BFPT-7 |
| Wind quantity (m3/h) | 4500 | 7500 | 10000 | 20000 | 30000 | 40000 | 50000 |
| Diameter (mm) | 1400 | 1610 | 1800 | 2130 | 2600 | 3200 | 3600 |
| Height (mm) | 2560 | 3080 | 3350 | 3770 | 3770 | 4100 | 4400 |
| Motor power of the fan (kW) | 7.5 | 15 | 15 | 22 | 30 | 37 | 55 |
| Resistance (mmHg) | 180-200 | 180-200 | 180-200 | 180-200 | 180-200 | 180-200 | 180-200 |
Note: FRP bubbling style filler air scrubber can also be customized according to customer's specific application.
Features & advantage:
Superior corrosion resistance.
High purification efficiency: more than 97%.
Reasonable structure design.
Cost-effectiveness: low energy consumption and low operating cost.
Lightweight: FRP is about one third the weight of metals or concrete. Therefore, it's easy to install and deliver.
Custom-design flexibility. We can offer customized production to meet your site-specific needs.
