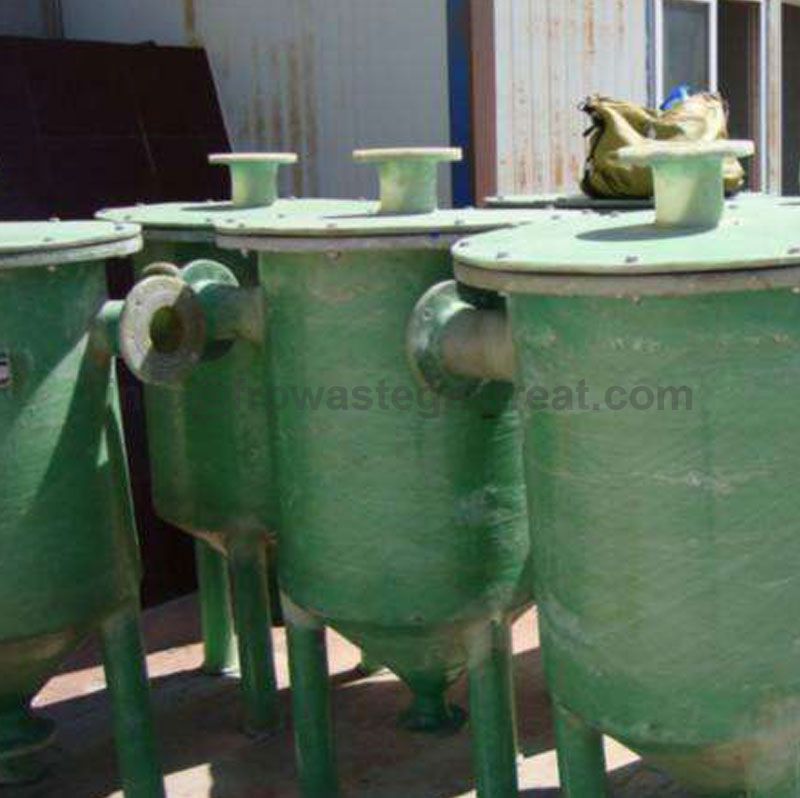

FRP Gas-Liquid Separator with high separation efficiency
FRP gas-liquid separator is also called air separator, air separation plant. It's used to separate the gas and liquid in the industrial system with liquid. Traditional gas-liquid separator mainly contains circulating separators and gravitational separators, which are heavy and have a low working efficiency.
FRP air separator is widely used in industries which need to fractionate gas and liquid.
Under this circumstance, we have developed a new kind of air separator. It's made of FRP which is lightweight and corrosion resistant. Meanwhile, it has a high efficiency to separate the gas and liquid. Our air separator can solve the problem and at the same time reduce costs and increase company benefit.
Feature & advantage:
FRP gas-liquid separator contains three parts: fractionation unit, demister pad and liquid storage tank. As its structure is simple, the FRP gas-liquid separator is easy to operate. Meanwhile, it has high separation efficiency, low voice, low loss of wind pressure and the work is stable.
Specification:
Material: FRP/GRP.
Diameter: 800 mm - 2200 mm.
Rated air flow: 5000 m3/h - 50000 m3/h.
| Specification of FRP gas-liquid separator | ||||||||
| Type | FGS-5 | FGS-10 | FGS-15 | FGS-20 | FGS-25 | FGS-30 | FGS-40 | FGS-50 |
| d × h (mm) | 800 × 2500 | 1000 × 2800 | 1200 × 3500 | 1300 × 3600 | 1500 × 3800 | 1800 × 4000 | 2000 × 4500 | 2200 × 4500 |
| Rated air flow (m3/h) | 5000 | 10000 | 15000 | 20000 | 25000 | 30000 | 40000 | 50000 |
| Loss of wind pressure (Pa) | 700 | 700 | 700 | 700 | 800 | 800 | 800 | 800 |

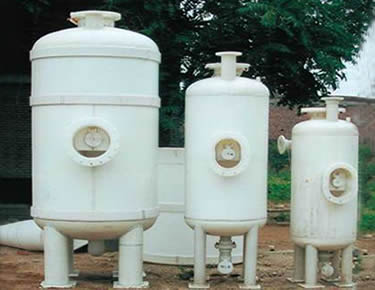

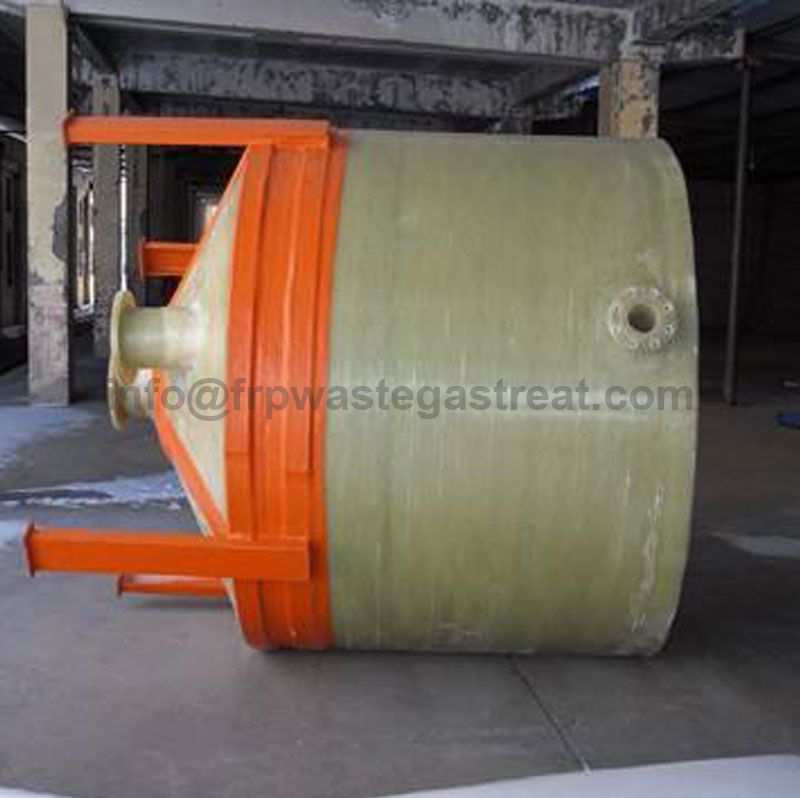

We would like to design and build the FRP gas-liquid separator according to your specific needs. Vertical separators and horizontal separators are available.

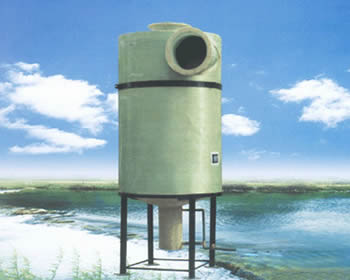

The vertical gas-liquid separator is the common specification.
